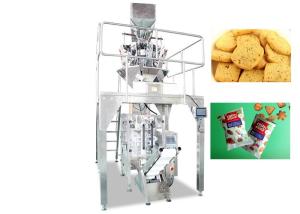

China Manufacturer Form Fill And Seal Cookies Packing Machine
Introduction

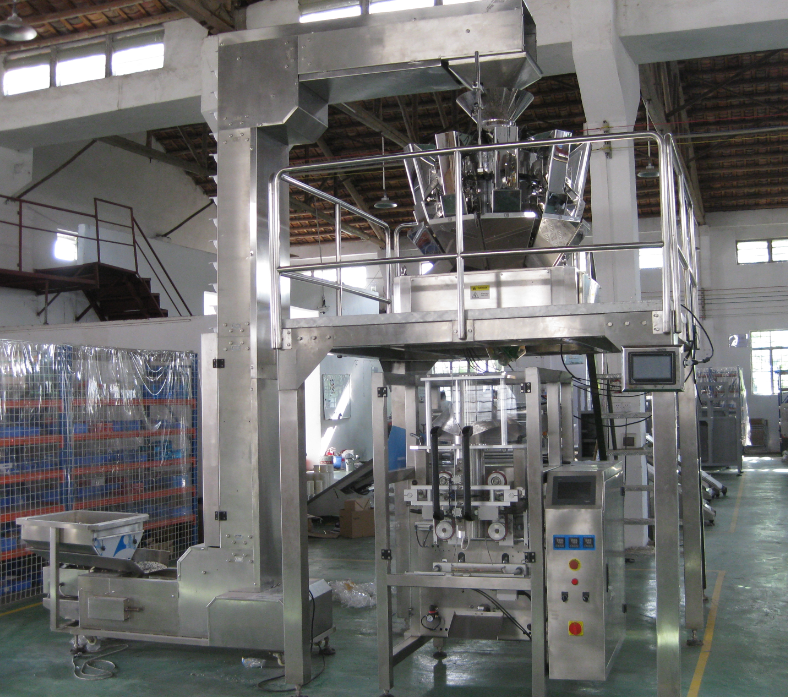

Packing machine with 10 heads weigher, automatically making bags, weighing, filingl and printing dates into pouches.
The units include following parts
* Large vertical automatic main packaging machine (with date printing, touch screen)
This machine can automatically complete following work: cup volumetric filler measuring--coding (optional)—bag making--filling--gas injection/exhaust (optional)--sealing--counting.
Computer / PLC control system, photoelectric tracking, high reliability and intellectualized degree.
Has fault display system, easy to operate and maintenance.
Multi-heads weigher
| ITEM | 10-Head-Weigher | 14-Head-Weigher |
| Max Capability | 10-800g | 800-1500g | 10-800g | 800-2000g |
| Weighing Accuracy | 0.1-0.5g | 0.5-2g | 0.1-1.5g | 0.5-2g |
| Max Weighing Speed | 65bags/min | 45bags/min | 120bags/min | 80bags/min |
* With quiet running, stable action and long life by adopting stepmotor.
* According to the features of the measured material, the opening and closing speed of the hopper door can be adjusted, that preventing crashing and damage.
All parts are made of stainless steel, clean and hygienic.
Z type elevator
| ITEM | Z-Type Elevator |
| Power | 0.75Kw |
| Conveying Capability | 3-6m³/h |
| Voltage | 380V |
| Gross Weight | 500Kg |
* The elevator uses with electronic metering scale. The control circuit is controlled by material level, achieving feeding and stopping automatically.
.
Supporting Platform
| ITEM | Supporting Platform |
| Dimension | L)1800 * W) 1800 * H)1800~2000mm |
| Material | Made of Carbon Steel or Stainless Steel |
* The platform is about 4 square meters and with rail and stairs.
* The material can be stainless steel or carbon steel.
Finished products conveyer
This machine adopts imported miniature motor and featured with low noise, long life. It can transport finished food to platform, reducing waste and letting machine run more smoothly.
Application
It’ s used for conveying the finished products.
Technical Characterictics
1.With instantaneous reaching of correct calculating by high-precision load cell.
2. With quiet running, stable action and long life by adopting step motor.
3.The open & close speed of the material bucket cover can be finely regulated according to the features of the measured material to prevent crashing and damage.
4. Neatness and hygiene by using stainless steel as the material of its parts.
5. With excellent compatibility and easy using with other packing equipment.
